Full Hybrid

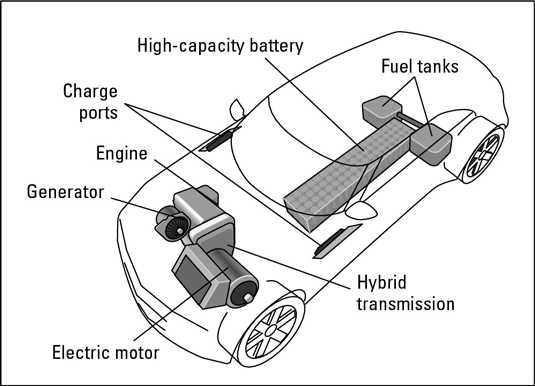

A series hybrid uses a gasoline or diesel ICE, coupled with a generator, to generate electricity but not to drive the car. The engine can send the electric current directly to the electric motor or charge a large battery that stores the electricity and delivers it to an electric motor on-demand. The electric motor propels the vehicle, using its power to rotate a driveshaft or a set of drive axles that turn the wheels.

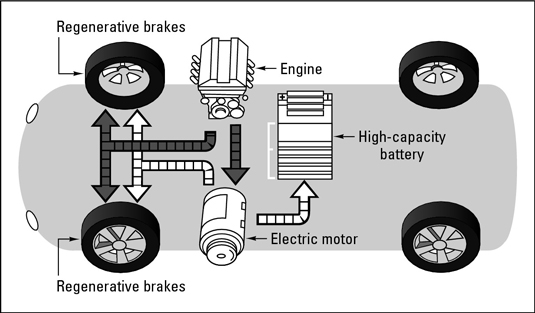

A parallel hybrid uses both an electric motor and an ICE for propulsion. They can run in tandem, or one can be used as the primary power source with the other kicking in to assist when extra power is needed for starting off, climbing hills, and accelerating to pass other vehicles. Because both are connected to the drive train, they’re said to run “in parallel.”

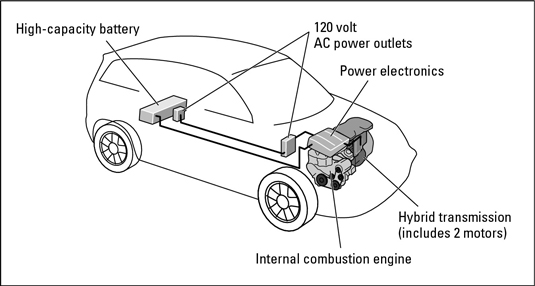

Two-mode hybrids may be the key to a competitive place for the U.S. in the hybrid market. Instead of the large storage battery found on conventional hybrids, two-mode hybrids use smaller batteries and two electric motors located inside an automatic transmission with two sets of gears — one for the ICE and the other to amplify the power of the electric motors. The transmission can function as a continuously variable transmission, as well. In one mode, at lower speeds, the vehicle can run with one or both electric motors, with or without the ICE, or on the ICE alone. At higher speeds, the second mode kicks in, and the ICE runs continuously in its higher gear ratios.
